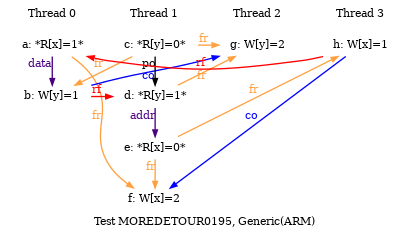

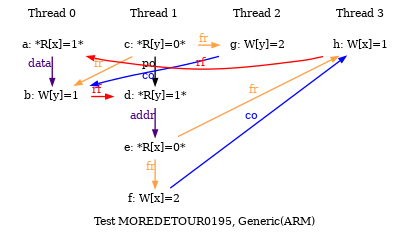

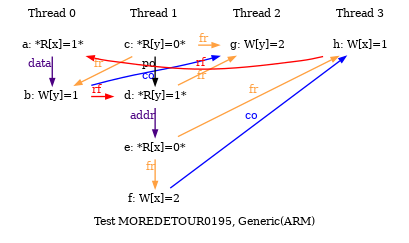

Test MOREDETOUR0195

ARM MOREDETOUR0195
"DpDatadW Rfe DetourR DpAddrdR DetourRW Rfe"
Cycle=Rfe DetourR DpAddrdR DetourRW Rfe DpDatadW
Prefetch=0:x=F,0:y=W,1:y=F,1:x=W
Com=Rf Rf
Orig=DpDatadW Rfe DetourR DpAddrdR DetourRW Rfe
{
%x0=x; %y0=y;
%y1=y; %x1=x;
%y2=y;
%x3=x;
}
 P0           | P1              | P2           | P3           ;
 LDR R0,[%x0] | LDR R0,[%y1]    | MOV R0,#2    | MOV R0,#1    ;
 EOR R1,R0,R0 | LDR R1,[%y1]    | STR R0,[%y2] | STR R0,[%x3] ;
 ADD R1,R1,#1 | EOR R2,R1,R1    |              |              ;
 STR R1,[%y0] | LDR R3,[R2,%x1] |              |              ;
              | MOV R4,#2       |              |              ;
              | STR R4,[%x1]    |              |              ;
exists (0:R0=1 /\ 1:R0=0 /\ 1:R1=1 /\ 1:R3=0 /\ [x]=1) \/ (0:R0=1 /\ 1:R0=0 /\ 1:R1=1 /\ 1:R3=0 /\ [x]=2) \/ (0:R0=1 /\ 1:R0=1 /\ 1:R1=1 /\ 1:R3=0 /\ [x]=1) \/ (0:R0=1 /\ 1:R0=1 /\ 1:R1=1 /\ 1:R3=0 /\ [x]=2) \/ (0:R0=1 /\ 1:R0=1 /\ 1:R1=2 /\ 1:R3=0 /\ [x]=1) \/ (0:R0=1 /\ 1:R0=1 /\ 1:R1=2 /\ 1:R3=0 /\ [x]=2) \/ (0:R0=1 /\ 1:R0=2 /\ 1:R1=1 /\ 1:R3=0 /\ [x]=1) \/ (0:R0=1 /\ 1:R0=2 /\ 1:R1=1 /\ 1:R3=0 /\ [x]=2)
