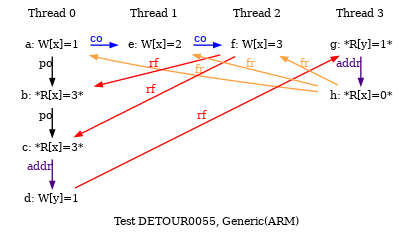

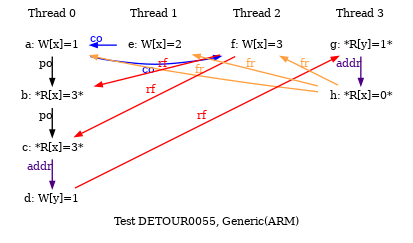

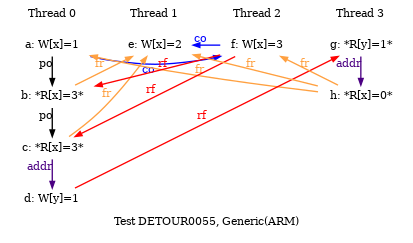

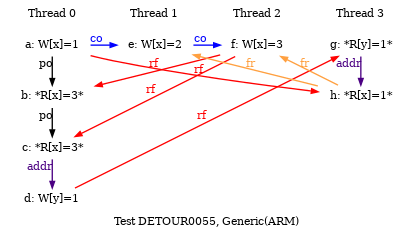

Test DETOUR0055

ARM DETOUR0055
"DetourW DetourR DpAddrdW Rfe DpAddrdR Fre"
Cycle=Rfe DpAddrdR Fre DetourW DetourR DpAddrdW
Prefetch=0:x=F,0:y=W,1:y=F,1:x=T
Com=Rf Fr
Orig=DetourW DetourR DpAddrdW Rfe DpAddrdR Fre
{
%x0=x; %y0=y;
%x1=x;
%x2=x;
%y3=y; %x3=x;
}
 P0              | P1           | P2           | P3              ;
 MOV R0,#1       | MOV R0,#2    | MOV R0,#3    | LDR R0,[%y3]    ;
 STR R0,[%x0]    | STR R0,[%x1] | STR R0,[%x2] | EOR R1,R0,R0    ;
 LDR R1,[%x0]    |              |              | LDR R2,[R1,%x3] ;
 LDR R2,[%x0]    |              |              |                 ;
 EOR R3,R2,R2    |              |              |                 ;
 MOV R4,#1       |              |              |                 ;
 STR R4,[R3,%y0] |              |              |                 ;
exists (0:R1=1 /\ 0:R2=2 /\ 3:R0=1 /\ 3:R2=0) \/ (0:R1=1 /\ 0:R2=2 /\ 3:R0=1 /\ 3:R2=1) \/ (0:R1=1 /\ 0:R2=3 /\ 3:R0=1 /\ 3:R2=0) \/ (0:R1=1 /\ 0:R2=3 /\ 3:R0=1 /\ 3:R2=1) \/ (0:R1=2 /\ 0:R2=2 /\ 3:R0=1 /\ 3:R2=0) \/ (0:R1=2 /\ 0:R2=2 /\ 3:R0=1 /\ 3:R2=1) \/ (0:R1=2 /\ 0:R2=3 /\ 3:R0=1 /\ 3:R2=0) \/ (0:R1=2 /\ 0:R2=3 /\ 3:R0=1 /\ 3:R2=1) \/ (0:R1=2 /\ 0:R2=3 /\ 3:R0=1 /\ 3:R2=2) \/ (0:R1=3 /\ 0:R2=2 /\ 3:R0=1 /\ 3:R2=0) \/ (0:R1=3 /\ 0:R2=2 /\ 3:R0=1 /\ 3:R2=1) \/ (0:R1=3 /\ 0:R2=2 /\ 3:R0=1 /\ 3:R2=3) \/ (0:R1=3 /\ 0:R2=3 /\ 3:R0=1 /\ 3:R2=0) \/ (0:R1=3 /\ 0:R2=3 /\ 3:R0=1 /\ 3:R2=1)
