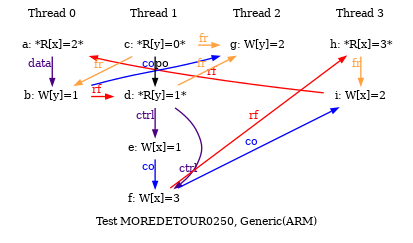

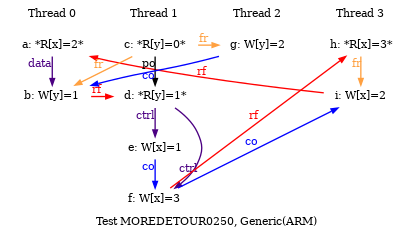

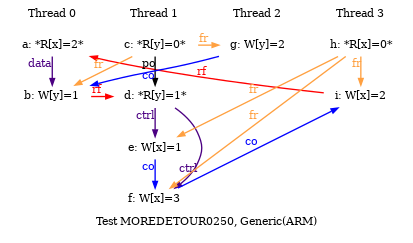

Test MOREDETOUR0250

ARM MOREDETOUR0250
"DpDatadW Rfe DetourR DpCtrldW DetourWW Rfe"
Cycle=Rfe DetourR DpCtrldW DetourWW Rfe DpDatadW
Prefetch=0:x=F,0:y=W,1:y=F,1:x=W
Com=Rf Rf
Orig=DpDatadW Rfe DetourR DpCtrldW DetourWW Rfe
{
%x0=x; %y0=y;
%y1=y; %x1=x;
%y2=y;
%x3=x;
}
 P0           | P1           | P2           | P3           ;
 LDR R0,[%x0] | LDR R0,[%y1] | MOV R0,#2    | LDR R0,[%x3] ;
 EOR R1,R0,R0 | LDR R1,[%y1] | STR R0,[%y2] | MOV R1,#2    ;
 ADD R1,R1,#1 | CMP R1,R1    |              | STR R1,[%x3] ;
 STR R1,[%y0] | BNE LC00     |              |              ;
              | LC00:        |              |              ;
              | MOV R2,#1    |              |              ;
              | STR R2,[%x1] |              |              ;
              | MOV R3,#3    |              |              ;
              | STR R3,[%x1] |              |              ;
exists (0:R0=2 /\ 1:R0=0 /\ 1:R1=1 /\ 3:R0=0 /\ [x]=2) \/ (0:R0=2 /\ 1:R0=0 /\ 1:R1=1 /\ 3:R0=1 /\ [x]=2) \/ (0:R0=2 /\ 1:R0=0 /\ 1:R1=1 /\ 3:R0=1 /\ [x]=3) \/ (0:R0=2 /\ 1:R0=0 /\ 1:R1=1 /\ 3:R0=3 /\ [x]=2) \/ (0:R0=2 /\ 1:R0=1 /\ 1:R1=1 /\ 3:R0=0 /\ [x]=2) \/ (0:R0=2 /\ 1:R0=1 /\ 1:R1=1 /\ 3:R0=1 /\ [x]=2) \/ (0:R0=2 /\ 1:R0=1 /\ 1:R1=1 /\ 3:R0=1 /\ [x]=3) \/ (0:R0=2 /\ 1:R0=1 /\ 1:R1=1 /\ 3:R0=3 /\ [x]=2) \/ (0:R0=2 /\ 1:R0=1 /\ 1:R1=2 /\ 3:R0=0 /\ [x]=2) \/ (0:R0=2 /\ 1:R0=1 /\ 1:R1=2 /\ 3:R0=1 /\ [x]=2) \/ (0:R0=2 /\ 1:R0=1 /\ 1:R1=2 /\ 3:R0=1 /\ [x]=3) \/ (0:R0=2 /\ 1:R0=1 /\ 1:R1=2 /\ 3:R0=3 /\ [x]=2) \/ (0:R0=2 /\ 1:R0=2 /\ 1:R1=1 /\ 3:R0=0 /\ [x]=2) \/ (0:R0=2 /\ 1:R0=2 /\ 1:R1=1 /\ 3:R0=1 /\ [x]=2) \/ (0:R0=2 /\ 1:R0=2 /\ 1:R1=1 /\ 3:R0=1 /\ [x]=3) \/ (0:R0=2 /\ 1:R0=2 /\ 1:R1=1 /\ 3:R0=3 /\ [x]=2)
