Test MOREDETOUR0197

ARM MOREDETOUR0197
"DpDatadW Rfe DpAddrdW PosWR DetourRW Rfe"
Cycle=Rfe DpAddrdW PosWR DetourRW Rfe DpDatadW
Prefetch=0:x=F,0:y=W,1:y=F,1:x=W
Com=Rf Rf
Orig=DpDatadW Rfe DpAddrdW PosWR DetourRW Rfe
{
%x0=x; %y0=y;
%y1=y; %x1=x;
%x2=x;
}
 P0           | P1              | P2           ;
 LDR R0,[%x0] | LDR R0,[%y1]    | LDR R0,[%x2] ;
 EOR R1,R0,R0 | EOR R1,R0,R0    | MOV R1,#2    ;
 ADD R1,R1,#1 | MOV R2,#1       | STR R1,[%x2] ;
 STR R1,[%y0] | STR R2,[R1,%x1] |              ;
              | LDR R3,[%x1]    |              ;
              | MOV R4,#3       |              ;
              | STR R4,[%x1]    |              ;

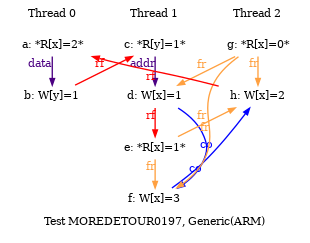

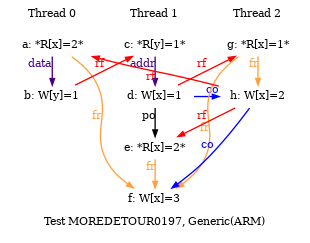

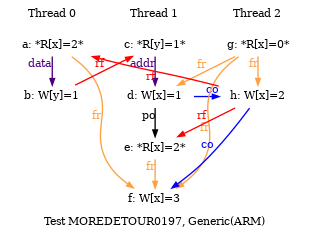

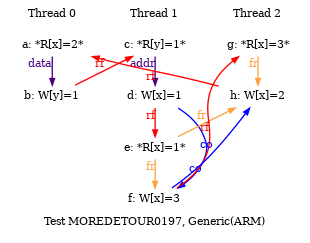

exists (0:R0=2 /\ 1:R0=1 /\ 1:R3=1 /\ 2:R0=0 /\ [x]=2) \/ (0:R0=2 /\ 1:R0=1 /\ 1:R3=1 /\ 2:R0=1 /\ [x]=2) \/ (0:R0=2 /\ 1:R0=1 /\ 1:R3=1 /\ 2:R0=1 /\ [x]=3) \/ (0:R0=2 /\ 1:R0=1 /\ 1:R3=1 /\ 2:R0=3 /\ [x]=2) \/ (0:R0=2 /\ 1:R0=1 /\ 1:R3=2 /\ 2:R0=0 /\ [x]=3) \/ (0:R0=2 /\ 1:R0=1 /\ 1:R3=2 /\ 2:R0=1 /\ [x]=3)
