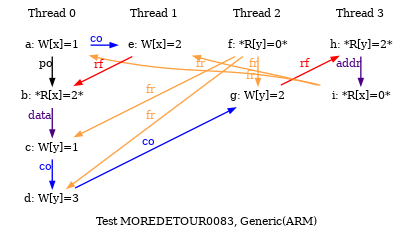

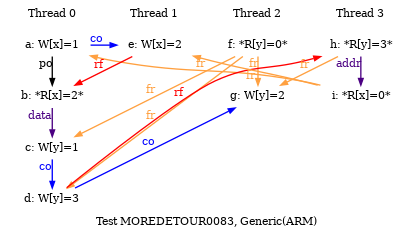

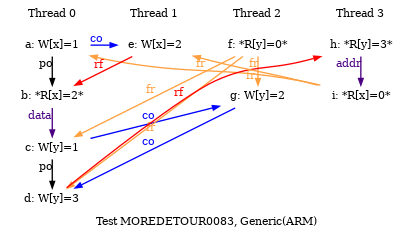

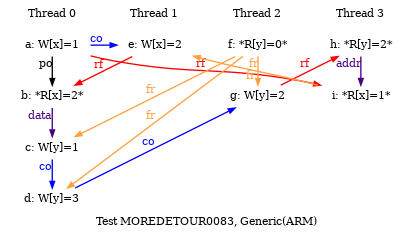

ARM MOREDETOUR0083
"DetourW DpDatadW DetourWW Rfe DpAddrdR Fre"
Cycle=Rfe DpAddrdR Fre DetourW DpDatadW DetourWW
Prefetch=0:x=F,0:y=W,1:y=F,1:x=T
Com=Rf Fr
Orig=DetourW DpDatadW DetourWW Rfe DpAddrdR Fre
{
%x0=x; %y0=y;
%x1=x;
%y2=y;
%y3=y; %x3=x;
}
P0 | P1 | P2 | P3 ;
MOV R0,#1 | MOV R0,#2 | LDR R0,[%y2] | LDR R0,[%y3] ;
STR R0,[%x0] | STR R0,[%x1] | MOV R1,#2 | EOR R1,R0,R0 ;
LDR R1,[%x0] | | STR R1,[%y2] | LDR R2,[R1,%x3] ;
EOR R2,R1,R1 | | | ;
ADD R2,R2,#1 | | | ;
STR R2,[%y0] | | | ;
MOV R3,#3 | | | ;
STR R3,[%y0] | | | ;
exists (0:R1=2 /\ 2:R0=0 /\ 3:R0=1 /\ 3:R2=0 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=0 /\ 3:R0=1 /\ 3:R2=0 /\ [y]=3) \/ (0:R1=2 /\ 2:R0=0 /\ 3:R0=1 /\ 3:R2=1 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=0 /\ 3:R0=1 /\ 3:R2=1 /\ [y]=3) \/ (0:R1=2 /\ 2:R0=0 /\ 3:R0=2 /\ 3:R2=0 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=0 /\ 3:R0=2 /\ 3:R2=1 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=0 /\ 3:R0=3 /\ 3:R2=0 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=0 /\ 3:R0=3 /\ 3:R2=0 /\ [y]=3) \/ (0:R1=2 /\ 2:R0=0 /\ 3:R0=3 /\ 3:R2=1 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=0 /\ 3:R0=3 /\ 3:R2=1 /\ [y]=3) \/ (0:R1=2 /\ 2:R0=1 /\ 3:R0=1 /\ 3:R2=0 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=1 /\ 3:R0=1 /\ 3:R2=0 /\ [y]=3) \/ (0:R1=2 /\ 2:R0=1 /\ 3:R0=1 /\ 3:R2=1 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=1 /\ 3:R0=1 /\ 3:R2=1 /\ [y]=3) \/ (0:R1=2 /\ 2:R0=1 /\ 3:R0=2 /\ 3:R2=0 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=1 /\ 3:R0=2 /\ 3:R2=0 /\ [y]=3) \/ (0:R1=2 /\ 2:R0=1 /\ 3:R0=2 /\ 3:R2=1 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=1 /\ 3:R0=2 /\ 3:R2=1 /\ [y]=3) \/ (0:R1=2 /\ 2:R0=1 /\ 3:R0=3 /\ 3:R2=0 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=1 /\ 3:R0=3 /\ 3:R2=0 /\ [y]=3) \/ (0:R1=2 /\ 2:R0=1 /\ 3:R0=3 /\ 3:R2=1 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=1 /\ 3:R0=3 /\ 3:R2=1 /\ [y]=3) \/ (0:R1=2 /\ 2:R0=3 /\ 3:R0=1 /\ 3:R2=0 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=3 /\ 3:R0=1 /\ 3:R2=1 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=3 /\ 3:R0=2 /\ 3:R2=0 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=3 /\ 3:R0=2 /\ 3:R2=1 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=3 /\ 3:R0=3 /\ 3:R2=0 /\ [y]=2) \/ (0:R1=2 /\ 2:R0=3 /\ 3:R0=3 /\ 3:R2=1 /\ [y]=2)
