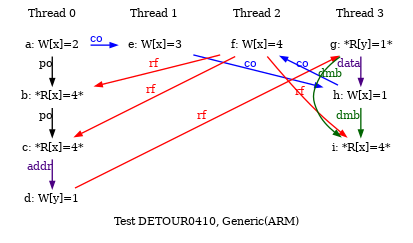

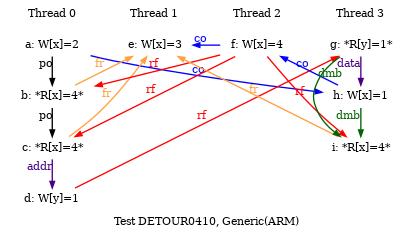

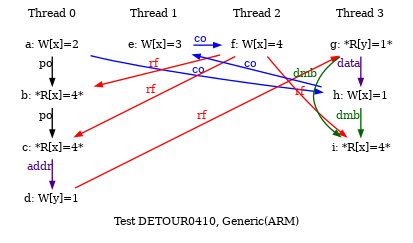

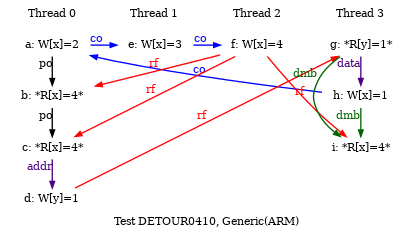

Test DETOUR0410

ARM DETOUR0410
"DetourW DetourR DpAddrdW Rfe DpDatadW Wse"
Cycle=Rfe DpDatadW Wse DetourW DetourR DpAddrdW
Prefetch=0:x=F,0:y=W,1:y=F,1:x=W
Com=Rf Ws
Orig=DetourW DetourR DpAddrdW Rfe DpDatadW Wse
{
%x0=x; %y0=y;
%x1=x;
%x2=x;
%y3=y; %x3=x;
}
 P0              | P1           | P2           | P3           ;
 MOV R0,#2       | MOV R0,#3    | MOV R0,#4    | LDR R0,[%y3] ;
 STR R0,[%x0]    | STR R0,[%x1] | STR R0,[%x2] | EOR R1,R0,R0 ;
 LDR R1,[%x0]    |              |              | ADD R1,R1,#1 ;
 LDR R2,[%x0]    |              |              | STR R1,[%x3] ;
 EOR R3,R2,R2    |              |              | DMB          ;
 MOV R4,#1       |              |              | LDR R2,[%x3] ;
 STR R4,[R3,%y0] |              |              |              ;
exists (0:R1=2 /\ 0:R2=3 /\ 3:R0=1 /\ 3:R2=2) \/ (0:R1=2 /\ 0:R2=3 /\ 3:R0=1 /\ 3:R2=3) \/ (0:R1=2 /\ 0:R2=4 /\ 3:R0=1 /\ 3:R2=2) \/ (0:R1=2 /\ 0:R2=4 /\ 3:R0=1 /\ 3:R2=4) \/ (0:R1=3 /\ 0:R2=3 /\ 3:R0=1 /\ 3:R2=2) \/ (0:R1=3 /\ 0:R2=3 /\ 3:R0=1 /\ 3:R2=3) \/ (0:R1=3 /\ 0:R2=4 /\ 3:R0=1 /\ 3:R2=2) \/ (0:R1=3 /\ 0:R2=4 /\ 3:R0=1 /\ 3:R2=3) \/ (0:R1=3 /\ 0:R2=4 /\ 3:R0=1 /\ 3:R2=4) \/ (0:R1=4 /\ 0:R2=3 /\ 3:R0=1 /\ 3:R2=2) \/ (0:R1=4 /\ 0:R2=3 /\ 3:R0=1 /\ 3:R2=3) \/ (0:R1=4 /\ 0:R2=3 /\ 3:R0=1 /\ 3:R2=4) \/ (0:R1=4 /\ 0:R2=4 /\ 3:R0=1 /\ 3:R2=2) \/ (0:R1=4 /\ 0:R2=4 /\ 3:R0=1 /\ 3:R2=4)
